Removable Insole For Electronics Manufacturing Cleanroom Assembly Floors

The Critical Role of Removable Insoles in Electronics Manufacturing & Cleanrooms

In the highly sensitive environment of electronics manufacturing, cleanrooms act as the frontline defense against microscopic contamination and electrostatic discharge (ESD). While cleanroom designers invest heavily in state-of-the-art HVAC systems, HEPA filters, conductive flooring, and specialized gowns, one critical variable often remains overlooked: the footwear of assembly line operators. Specifically, the integration of specialized removable insoles for electronics manufacturing cleanroom assembly floors has emerged as a cornerstone in modern cleanroom contamination control and worker safety protocols.

As microprocessors shrink and components become increasingly vulnerable to static damage, the demand for high-performance, ESD-safe, and particle-free insoles has escalated. These removable insoles are not merely comfort accessories; they are vital components of a comprehensive ESD grounding pathway. By providing a continuous electrical path from the operator’s foot to the conductive cleanroom shoe, and ultimately to the ESD floor, these insoles prevent the buildup of triboelectric charges that could destroy multimillion-dollar electronic components.

Industrial Status & The Contamination Control Landscape

Today's electronics manufacturing plants operate under strict ISO cleanroom classifications (ranging from ISO Class 3 to Class 8). Every material entering these spaces must undergo rigorous outgassing and particle-emission evaluations. Historically, insoles made from standard polyurethane (PU) or ethylene-vinyl acetate (EVA) were prone to shedding micro-particles due to mechanical friction during walking. Furthermore, chemical outgassing from volatile organic compounds (VOCs) in traditional adhesives posed a severe risk to wafer fabrication lines.

The industrial status quo has shifted towards specialized, cleanroom-grade removable insoles. The industry now demands materials that do not degrade, flake, or outgas. Manufacturers are turning to advanced supercritical foaming processes and cross-linked polymer formulations that retain structural integrity under continuous pressure. The market is also seeing a heavy emphasis on washability and sterilization compatibility, allowing companies to clean and reuse insoles, thereby aligning with corporate sustainability initiatives while maintaining cleanroom protocols.

Key Industrial Trends: Sustainability and Supercritical Foaming

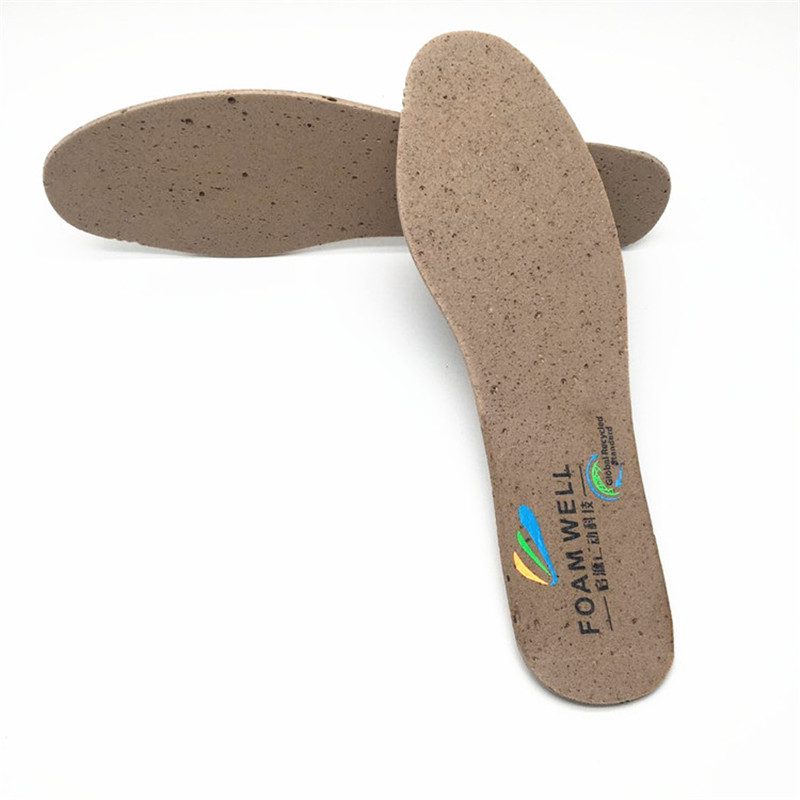

The global push for eco-friendly manufacturing is reshaping the electronics supply chain. Companies like Foamwell are leading the way by developing bio-based foam insoles, such as those utilizing recycled coffee grounds and plant-derived polyols. Historically, sustainable materials were excluded from cleanrooms due to fears of biological contamination or structural degradation. However, modern processing technologies have made bio-based PU foams highly stable, anti-microbial, and cleanroom-compliant.

Another major trend is the adoption of Supercritical Foaming Technology. By using nitrogen or carbon dioxide in a supercritical state to expand the polymer, manufacturers can create insoles with incredibly uniform cell structures without using chemical blowing agents. This results in an ultra-lightweight insole with high resilience, minimal compression set, and zero VOC outgassing, making it perfect for the most sensitive ISO Class 4 semiconductor environments.

Deep Dive: Application Scenarios on Cleanroom Assembly Floors

1. Semiconductor Wafer Fabrication & Lithography

In wafer fabs, where even a single sub-micron particle can ruin a silicon wafer, the cleanroom is kept at positive pressure with constant laminar airflow. Workers spend hours standing at lithography and etching stations. Here, removable insoles must offer absolute zero-outgassing performance. The conductive pathway must be flawless, as static discharge can instantly vaporize microscopic circuits on the wafer. Foamwell's specialized ESD insoles provide the necessary grounding while ensuring no particulate shedding occurs inside the shoe chamber.

2. Surface Mount Technology (SMT) Assembly Lines

SMT lines are fast-paced environments where automated machines place components onto PCBs. Human operators supervise these machines, reload component reels, and perform manual inspections. Walking on static-dissipative tiling (ESD floors) generates friction. Removable insoles with integrated silver ions or carbon-infused top covers ensure that static charges are continuously routed through the conductive footwear to the floor, protecting sensitive ICs, diodes, and microcontrollers from latent damage.

3. Display Panel (OLED/LCD) Cleanroom Manufacturing

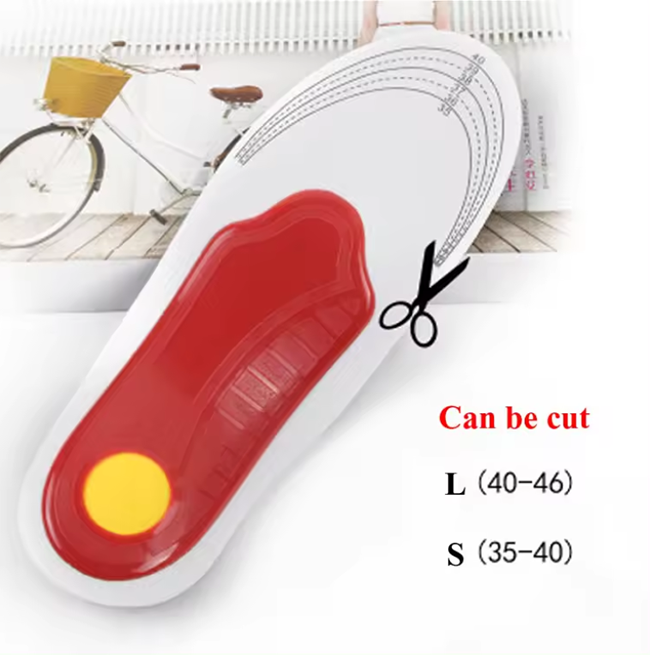

Modern flat-panel displays are highly sensitive to particulate contamination, which causes pixel defects. Operators in display fabs wear full-body bunny suits and cleanroom boots. The physical strain of standing on hard concrete floors covered in ESD epoxy can lead to musculoskeletal disorders (MSDs). Ergonomically designed orthotic insoles with arch support help distribute body weight evenly, reducing fatigue and improving productivity without compromising the cleanroom's strict particle-count limits.

Ergonomics & The Human Factor: Overcoming Assembly Floor Fatigue

Cleanroom floors are notoriously unforgiving. Typically constructed of solid concrete topped with conductive epoxy or raised metallic tiles, these surfaces provide zero shock absorption. Over an 8-to-12-hour shift, assembly workers experience cumulative micro-trauma in their joints, heels, and lower back. This fatigue not only leads to higher absenteeism and worker compensation claims but also increases the error rate on the assembly line.

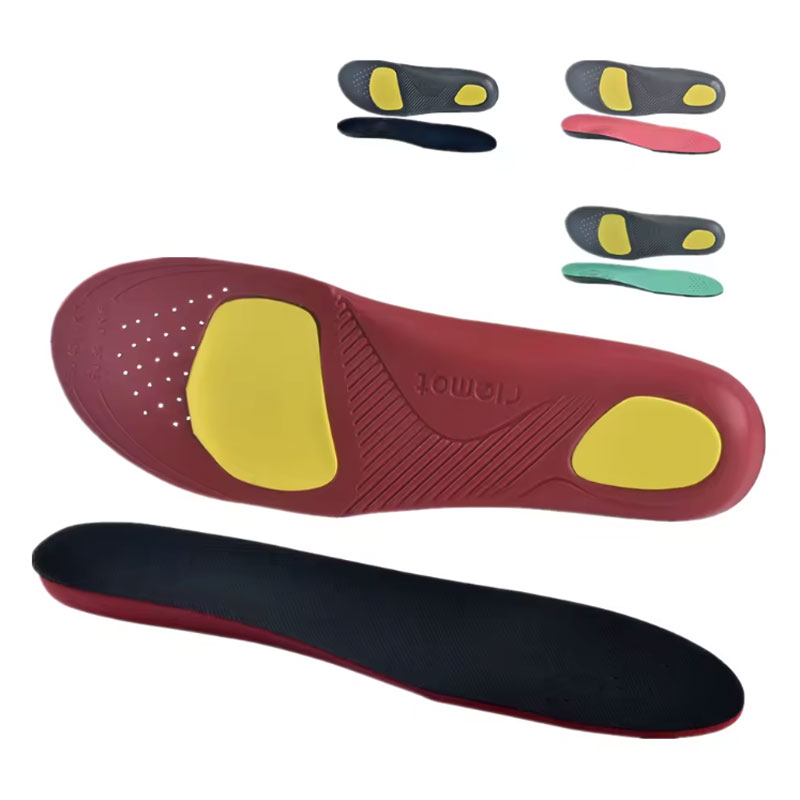

Integrating ergonomic removable insoles with targeted heel cushioning and dynamic arch support helps mitigate these issues. By absorbing the impact forces of walking and standing, these insoles enhance blood circulation and reduce muscle fatigue. The challenge lies in balancing comfort with electrostatic requirements: the foam must remain conductive even when compressed under the worker's weight. Foamwell addresses this by formulating conductive networks throughout the molecular structure of the foam, ensuring that comfort does not come at the cost of static protection.
